Radarowe pomiary poziomu

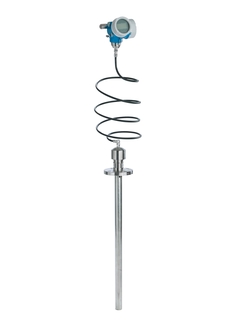

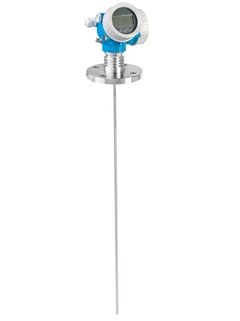

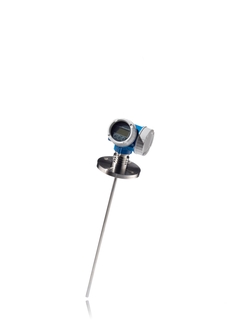

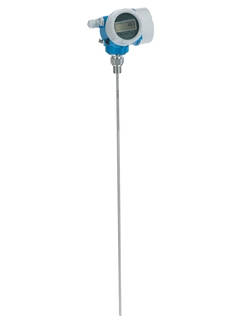

Levelflex FMP51
Sonda radarowa z falowodem do standardowych zadań pomiaru poziomu i rozdziału warstw cieczy
Levelflex FMP51 służy do pomiarów w zróżnicowanych warunkach procesowych w zbiorniku. Zapewnia niezawodność, gdy powierzchnia cieczy wrze, występuje piana, ciecz rozwarstwia się a konstrukcja wnętrza zbiornika zakłóca pomiar bezkontaktowy. Levelflex FMP51 służy do ciągłego pomiaru poziomu cieczy, past i szlamów oraz do detekcji rozdziału warstw cieczy. Zmiany gęstości medium, temperatury i ciśnienia, jak również uwalnianie gazów i dynamicznie zmieniająca się ich kompozycja nad powierzchnią cieczy nie mają wpływu na przebieg pomiaru. Zdalny dostęp do FMP51 jest możliwy za pomocą Bluetooth i nieodpłatnej aplikacji SmartBlue np. na smartfon.
- F
- L
- E
- X
-
Produkty podstawowe
- Łatwe w doborze, montażu i obsłudze
Poziom zaawansowania
Prostota obsługi
-
Produkty standardowe
- Niezawodne, wytrzymałe i łatwe w utrzymaniu
Poziom zaawansowania
Prostota obsługi
-
Produkty zaawansowane
- Wysoka funkcjonalność i wygoda użytkowania
Poziom zaawansowania
Prostota obsługi
-
Produkty specjalistyczne
- Zaprojektowane z myślą o wymagających procesach
Poziom zaawansowania
Prostota obsługi
Zależna od urządzenia
Segmentacja FLEX | Poziom zaawansowania | Prostota obsługi |
---|---|---|
Segment Fundamental Zaspokoi Twoje podstawowe potrzeby pomiarowe |
Poziom zaawansowania
|
Prostota obsługi
|
Segment Lean Z łatwością obsłuży Twoje codzienne procesy |
Poziom zaawansowania
|
Prostota obsługi
|
Segment Extended Zoptymalizuje Twoje procesy dzięki innowacyjnym technologiom |
Poziom zaawansowania
|
Prostota obsługi
|
Segment Xpert Sprosta Twoim najbardziej wymagającym pomiarom |
Poziom zaawansowania
|
Prostota obsługi
Zależna od urządzenia |
-
Kluczowe parametry
-
Błąd pomiaru
Rod probe :+/- 2 mm (0.08 in)
Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in)
Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)
Coaxial probe: +/- 2 mm (0.08 in) -
Temperatura procesu
-50...+200 °C
(-58...+392 °F) -
Absolutne ciśnienie medium / Wartość graniczna nadciśnienia
Vacuum...40 bar
(Vacuum...580 psi) -
Maks. odległość pomiarowa
Rod: 10 m (33 ft) Min DK>1.6
Rope: 25 m...30 m (82ft...98 ft) Min DK>1.6;
30m...45 m (98ft...148 ft) Min DK>1,9
Coaxial probe: 6 m (20 ft) Min DK>1.4 -
Główne części wchodzące w kontakt z medium
Rod probe:
316L, Alloy C, Ceramic
Rope probe:
316, 316L, Alloy C, Ceramic
Coaxial probe:
316L, Alloy C, Ceramic, PFA
-
Szybki wybór
Indywidualna konfiguracja
-
Korzyści
Niezawodne pomiary w dynamicznie zmiennych warunkach technologicznych w zbiorniku (wrzenie lustra cieczy, piana, zmiany gęstości i/lub rodzaju cieczy, rozwarstwianie się cieczy itp.)
Wbudowana pamięć HistoROM do bezpiecznego zarządzania danymi ułatwia i...
-
Zastosowanie
Sonda radarowa z falowodem do standardowych zastosowań pomiaru poziomu i rozdziału warstw cieczy
Przyłącza technologiczne: gwintowe i kołnierzowe
Temperatura medium: -50...+200°C
Ciśnienie medium: -1...+40 bar
Maks. zakres pomiarowy: falowód prętowy 10 m,...
Dokumentacja / Instrukcje obsługi / Oprogramowanie
-
Levelflex FMP51
Modbus
Technical Information
Guided wave radar
Karta katalogowa (TI) -
Weld-in adapter, process adapter and flanges
Level and pressure measurement
Karta katalogowa (TI) -
Levelflex FMP51, FMP52, FMP54
Guided wave radar
Karta katalogowa (TI) -
Levelflex FMP51, FMP52, FMP54
FOUNDATION Fieldbus
Operating Instructions
Guided wave radar
Instrukcja obsługi (BA) -
Levelflex / Levelflex M
Zentrierscheibe / Centering disk (PFA)
Mounting Instructions
Accessory
Instrukcja obsługi (BA) -
Levelflex FMP51, FMP52, FMP54
PROFIBUS PA
Operating Instructions
Guided wave radar
Instrukcja obsługi (BA) -
Accessory
Centering star PEEK
Instrukcja obsługi (BA) -
Levelflex FMP51
Modbus
Operating Instructions
Guided wave radar
Instrukcja obsługi (BA) -
Levelflex FMP51, FMP52, FMP54
HART
Guided wave radar
Instrukcja obsługi (BA) -
Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
FOUNDATION Fieldbus
Description of Device Parameters
Guided wave radar
Parametry urządzenia (GP) -
Levelflex FMP5x
HART
Description of Device Parameters
Guided wave radar
Parametry urządzenia (GP) -
Levelflex FMP5x
Modbus
Description of Device Parameters
Guided wave radar
Parametry urządzenia (GP) -
Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
PROFIBUS PA
Description of Device Parameters
Guided wave radar
Parametry urządzenia (GP) -
Levelflex FMP51, FMP52, FMP54
PROFIBUS PA
Skrócona instrukcja obsługi
Radar falowodowy
Short Instruction (KA)04/18Angielski -
Levelflex FMP51, FMP52, FMP54
Skrócona instrukcja obsługi
Radar falowodowy
Short Instruction (KA)04/18Angielski -
Levelflex FMP51, FMP52, FMP54
HART
Skrócona instrukcja obsługi
Radar falowodowy
Short Instruction (KA)04/18Angielski -
Levelflex FMP51
Wersja Modbus
Skrócona instrukcja obsługi
Radar falowodowy
Short Instruction (KA)03/19Angielski -
Probe weight for FMP5x
Installation instruction
Levelflex
Wskaz�wki montażowe (EA) -
Sealing set
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200, Remote display FHX50Wskaz�wki montażowe (EA) -
Replacing the main electronics module
Installation Instructions
Promass 200 / TB2, Prosonic Flow 200, Promag 200
Wskaz�wki montażowe (EA) -
Set HF cable for compact and remte versions
Installation Instruction
Levelflex
Wskaz�wki montażowe (EA) -
Housing filter
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,Wskaz�wki montażowe (EA) -
Display module
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x
Wskaz�wki montażowe (EA) -
I/O module
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,Wskaz�wki montażowe (EA) -
Main electronics module
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x
Wskaz�wki montażowe (EA) -
Housing plug M12 for connection of FHX50
Installation Instruction
Levelflex, Micropilot
Wskaz�wki montażowe (EA) -
Transmitter electronics FHX50
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,Wskaz�wki montażowe (EA) -
M12 connector, IP66/68 NEMA4X/6P, ProToF
Installation Instructions
Levelflex FMP5x
Micropilot FMR5x, FMR6xWskaz�wki montażowe (EA) -
Nordlock disc, counter nut, threaded pin for FMP5x, FMP4x
Installation instruction
Levelflex, Levelflex M
Wskaz�wki montażowe (EA) -
Probe with process connection for FMP5x
Installation instruction
Levelflex FMP5x -
Wskaz�wki montażowe (EA) -
O-ring set, connection of probe rod or probe rope for FMP50, FMP51
Installation instruction
Levelflex FMP50m, FMP51
Wskaz�wki montażowe (EA) -
probe rod, rope without process connection for FMP50, FMP51
Installation instruction
Levelflex FMP50, FMP51
Wskaz�wki montażowe (EA) -
Housing GT18, GT19, GT20
Levelflex, Micropilot
Wskaz�wki montażowe (EA) -
Set housing security clamp
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,Wskaz�wki montażowe (EA) -
Replacing the display module
Installation Instructions
Promag 200, Promass 200, Prosonic Flow 200, Prowirl 200, t-mass 150,
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x, Remote dis
play FHX50Wskaz�wki montażowe (EA) -
Terminal set
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x, Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,Wskaz�wki montażowe (EA) -
Cover
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200, Remote display FHX50Wskaz�wki montażowe (EA) -
Coax cable for FMP5x
Installation instruction
Levelflex
Wskaz�wki montażowe (EA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Ex ic IIC T6-T1 Gc
INMETRO IEE 11.0076X (INMETRO)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
II 1/2 D Ex ta/tb IIIC T85°C Da/Db
IECEx:
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Ex ta/tb IIIC T85°C Da/Db
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
ATEX:
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
IECEx:
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 3 G Ex nA IIC T6-T1 Gc
IECEx: Ex nA IIC T6-T1 GcInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP/DIP
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI:
Ex ia IIC T1-T6 Ga
Ex ia IIC T1-T6 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
EAC:
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI:
Ex ic IIC T1-T6 Gc
Ex nA IIC T1-T6 Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP51/52/54/55/56/57
4-20 mA HART
Ex d [ia] IIC T4 Ga/Gb
Ex d [ia] IIC T2 Ga/Gb
Ex d [ia] IIC T1 Ga/GbInstrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 3 G Ex ic IIC T6-T1 Gc
II 3 G Ex nA IIC T6-T1 Gc
IECEx: Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 GcInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
II 1/2 D Ex ia IIIC T85°C Da/Db
IECEx:
Ex ia IIC T6...T1 Ga/Gb
Ex ia IIIC T85°C Da/Db
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
2-wire, 4...20 mA
Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 Gc
GYJ11.1553X (NEPSI)Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
4-wire
Ex nA IIC T6-T1 Gc
GYJ11.1553X (KC)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI:
Ex ic IIC T1-T6 Gc
Ex nA IIC T1-T6 Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
2-wire, switch output (PFS)
Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 Gc
GYJ11.1553X (NEPSI)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI:
Ex ia IIC T1-T6 Ga/Gb
Ex iaD 20/21 T
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing IS
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP51/52/54/55
ATEX: II 1/2/3 G Ex ic [ia] IIC T6-T1 Ga/Gb/Gc,
II 1/2/3 G Ex nA [ia] IIC T6-T1 Ga/Gb/Gc
IECEx: Ex ic [ia] IIC T6-T1 Ga/Gb/Gc,
Ex nA [ia] IIC T6-T1 Ga/Gb/GcInstrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Zone 0 Ex ia IIC T6-T1
Zone 0/1 Ex ia IIC T6-T1
11-KB4BO-0257X (KC)Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
ATEX: II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
IECEx: Ex d [ia] IIC T6-T1 Ga/GbInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
Ex ia IIC T1-T6 Ga/Gb
Ex d [ia] IIC T1-T6 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
ATEX:
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
IECEx:
Ex ia IIC T6...T1 Ga/Gb
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1 G Ex ia IIC T6...T1 Ga
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
IECEx:
Ex ia IIC T6...T1 Ga
Ex ia IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
INMETRO:
Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
4-wire
Ex d [ia] IIC T6-T1 Ga/Gb
DIP A20/21 TA, T IP6X
GYJ11.1553X (NEPSI)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
EAC:
Ga/Gb Ex ia IIC T6...T1 X
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
4-20 mA HART
4-wire
Ex d [ia] IIC T6-T1 Ga/Gb
GYJ11.1553X (NEPSI)Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP51/52/54/55
ATEX: II 1/2/3 G Ex nA [ia] IIC T6-T1 Ga/Gb/Gc
IECEx: Ex nA [ia] IIC T6-T1 Ga/Gb/GcInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
INMETRO:
Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Power Supply; Output: C (2-wire, 4...20 mA)
Ex ia IIC T6-T1 Ga
DEKRA 13.0006 X (INMETRO)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP51/52/54/55
EAC:
Ga/Gb/Gc Ex ia/ic [ia Ga] IIC T6...T1 X
Ga/Gb/Gc Ex ia/nA [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI:
Ex ia IIC T1-T6 Ga/Gb
Ex iaD 20/21 T
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
II 1/2 D Ex ta IIIC Txx°C Da/Db
IECEx: Ex d [ia] IIC T6-T1 Ga/Gb
Ex ta IIIC Txx°C Da/DbInstrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 1 G Ex ia IIC T6-T1 Ga
II 1/2 G Ex ia IIC T6-T1 Ga/Gb
IECEx: Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/GbInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
0Ex ia IIC T6...T1 Ga X
Ga/Gb Ex ia IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Ex d [ia] IIC T6-T1 Ga/Gb
INMETRO IEE 11.0076X (INMETRO)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
INMETRO:
Ex ia/db [ia Ga] IIC T6-T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing IS
FM C/US IS Cl. I, Div. 1, Groups A-D, Cl. I, Zone 0, AEx ia/Ex ia IIC
FM C/US IS Cl. I, II, III, Div. 1, Groups A-G, Cl. I, Zone 0, AEx ia/Ex
ia IIC; NI Cl.
I, Div. 2, Groups A-D
FM/CSA IS + XP-AIS Cl. I, Div. 1, Groups A-D, DIP Cl. II, III, Div. 1,
Groups E-GInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP/DIP
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
ATEX: II 1/2 G Ex ia IIC T6-T1 Ga/Gb
II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
IECEx: Ex ia IIC T6-T1 Ga/Gb
Ex d [ia] IIC T6-T1 Ga/GbInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 3 G Ex ic IIC T6...T1 Gc
II 3 G Ex nA IIC T6...T1 Gc
IECEx:
Ex ic IIC T6...T1Gc
Ex nA IIC T6...T1 Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP51/52/54/55
EAC:
Ga/Gb/Gc Ex ia/ic [ia Ga] IIC T6...T1 X
Ga/Gb/Gc Ex ia/nA [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 1 G Ex ia IIC T6-T1 Ga
II 1/2 G Ex ia IIC T6-T1 Ga/Gb
IECEx: Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/GbInstrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Power Supply; Output: C (2-wire, 4...20 mA)
Ex ic IIC T6-T1 Gc
DEKRA 13.0006 X (INMETRO)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
II 1/2 D Ex ta/tb IIIC T85°C Da/Db
IECEx:
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Ex ta/tb IIIC T85°C Da/Db
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing IS
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing IS
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Power Supply; Output: B (2-wire, switch output (PFS))
Ex ia IIC T6-T1 Ga
DEKRA 13.0006 X (INMETRO)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 3 G Ex ic IIC T6...T1 Gc
II 3 G Ex nA IIC T6...T1 Gc
IECEx:
Ex ic IIC T6...T1 Gc
Ex nA IIC T6...T1 Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 3 G Ex ic IIC T6-T1 Gc
II 3 G Ex nA IIC T6-T1 Gc
IECEx: Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 GcInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Ex ta/tb IIIC Txx°C Da/Db X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
Ga/Gb Ex ia IIC T6...T1 X
Ex ia IIIC Txx°C Da/Db X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
2Ex ic IIC T6...T1 Gc X
2Ex nA IIC T6...T1 Gc X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
2Ex ic IIC T6...T1 Gc X
2Ex nA IIC T6...T1 Gc X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Ex ta/tb IIIC Txx°C Da/Db X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI:
Ex ia/d [ia Ga] IIC T1-T6 Ga/Gb
Ex tD A20/21 IP6X T
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
2-wire, switch output (PFS)
Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/Gb
GYJ11.1553X (NEPSI)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
II 1/2 D Ex ia IIIC T85°C Da/Db
IECEx:
Ex ia IIC T6...T1 Ga/Gb
Ex ia IIIC T85°C Da/Db
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
EAC:
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP/DIP
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
ATEX:
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
IECEx:
Ex ia IIC T6...T1 Ga/Gb
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
0Ex ia IIC T6...T1 Ga X
Ga/Gb Ex ia IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
INMETRO:
Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
INMETRO:
Ex ia/db [ia Ga] IIC T6-T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
4-20 mA HART
Zone 0/1 Ex d [ia] IIC T6-T1
11-KB4BO-0256X (KC)Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Ex ia IIC T6-T1 Ga
INMETRO IEE 11.0076X (INMETRO)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
NEPSI:
Ex ia/d [ia Ga] IIC T1-T6 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
INMETRO:
Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1 G Ex ia IIC T6...T1 Ga
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
IECEx:
Ex ia IIC T6...T1 Ga
Ex ia IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP51/52/54/55
ATEX:
II 1/2/3 G Ex ia/ic [ia Ga] IIC T6...T1 Ga/Gb/Gc
II 1/2/3 G Ex ia/nA [ia Ga] IIC T6...T1 Ga/Gb/Gc
IECEx:
Ex ia/ic [ia Ga] IIC T6...T1 Ga/Gb/Gc
Ex ia/nA [ia Ga] IIC T6...T1 Ga/Gb/Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP51/52/54/55
Ex ic [ia] IIC T1-T6 Ga/Gb/Gc
Ex nA [ia] IIC T1-T6 Ga/Gb/Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI:
Ex ia IIC T1-T6 Ga
Ex ia IIC T1-T6 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
ATEX:
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
IECEx:
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
Ex ia IIC T1-T6 Ga/Gb
Ex d [ia] IIC T1-T6 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
4-20 mA HART
Power Supply; Output: K, L (4-wire)
Ex d [ia] IIC T6-T1 Ga/Gb
DEKRA 13.0006 X (INMETRO)Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
Ga/Gb Ex ia IIC T6...T1 X
Ex ia IIIC Txx°C Da/Db X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP51/52/54/55
ATEX: II 1/2/3 G Ex ic [ia] IIC T6-T1 Ga/Gb/Gc,
II 1/2/3 G Ex nA [ia] IIC T6-T1 Ga/Gb/Gc
IECEx: Ex ic [ia] IIC T6-T1 Ga/Gb/Gc,
Ex nA [ia] IIC T6-T1 Ga/Gb/GcInstrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Power Supply; Output: B (2-wire, switch output (PFS))
Ex ic IIC T6-T1 Gc
DEKRA 13.0006 X (INMETRO)Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
2-wire, 4...20 mA
Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/Gb
GYJ11.1553X (NEPSI)Instrukcje dot. bezpieczeństwa Ex (XA) -
Bluetooth® module BT10
Suitable for Micropilot FMR5x, FMR6x and Levelflex FMP5x with 4-20 mA
HART
Certified according to:
ATEX/IECEx:
Ex ia, Ex ia/db,Ex ic, Ex ia/ic,
Ex ec, Ex ia/ec, Ex d,
Ex nA, Ex ia/nA, Ex ta, Ex ta/tb
EPL:
Ga, Ga/Gb, Gc, Ga/Gb/Gc, Da, Da/DbInstrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMR50/51/52/53/54/55/56/57
FM
ATEX
IECExInstrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP/DIP
FM C/US XP-AIS Cl. I, Div. 1, Groups A-D, Cl. I, Zone 1, AEx d [ia]
IIC/Ex d [ia] IIC
FM C/US DIP Cl, II,III, Div. 1, Groups E-G
FM C/US XP-AIS Cl. I, II, III, Div. 1, Groups A-G, Cl. I, Zone 1, AEx d
[ia] IIC/Ex d
[ia] IIC, NI Cl. I,Div. 2, Groups A-D
FM/CSA IS+XP-AIS Cl. I, Div. 1, Groups A-D, DIP Cl. II, III, Div. 1,
Groups E-GInstrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
EAC:
Ga/Gb Ex ia IIC T6...T1 X
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP51/52/54/55
Ex ic [ia] IIC T1-T6 Ga/Gb/Gc
Ex nA [ia] IIC T1-T6 Ga/Gb/Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP51/52/54/55
ATEX:
II 1/2/3 G Ex ia/ic [ia Ga] IIC T6...T1 Ga/Gb/Gc
II 1/2/3 G Ex ia/nA [ia Ga] IIC T6...T1 Ga/Gb/Gc
IECEx:
Ex ia/ic [ia Ga] IIC T6...T1 Ga/Gb/Gc
Ex ia/nA [ia Ga] IIC T6...T1 Ga/Gb/Gc
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI:
Ex ia/d [ia Ga] IIC T1-T6 Ga/Gb
Ex tD A20/21 IP6X T
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Levelflex FMP50/51/52/53/54/55
NEPSI:
Ex ia/d [ia Ga] IIC T1-T6 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Instrukcje dot. bezpieczeństwa Ex (XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
ATEX: II 1/2 G Ex ia IIC T6-T1 Ga/Gb
II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
IECEx: Ex ia IIC T6-T1 Ga/Gb
Ex d [ia] IIC T6-T1 Ga/GbInstrukcje dot. bezpieczeństwa Ex (XA) -
RFID TAG
Certificate/Declaration of Conformity
ATEX:
II 2 G Ex ia IIC T6 Gb
II 2 D Ex ia IIIC T80°C Db;
IECEx:
Ex ia IIC T6 Gb
Ex ia IIIC T80°C Db
IECEx EPS 15.0042X; EPS 15 ATEX 1 1011 XCertyfikat (ZE) -
Levelflex FMP50/51/52/53/54
Allgemeine bauaufsichtliche Zulassung Z-65.16-501 (DIBt)
Certyfikat (ZE) -
Levelflex FMP51, FMP54
Mounting the probe rod
Levelflex FMP51, FMP54
Mounting the probe rodDokumentacja specjalna (SD) -
Levelflex FMP50/51/52/53/54/55/56/57
Levelflex Quick Setup
Levelflex FMP50/51/52/53/54/55/56/57
Levelflex Quick SetupDokumentacja specjalna (SD) -
Zentrierstern für Levelflex FMP51, FMP54
Centering star for Levelflex FMP51, FMP54
Guided wave radar
Special Documentation
Zentrierstern für Levelflex FMP51, FMP54
Centering star for Levelflex FMP51, FMP54Dokumentacja specjalna (SD) -
Levelflex FMP50/51/52/53/54/55/56/57
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
Dokumentacja specjalna (SD) -
Levelflex FMP50/51/52/53/54/55/56/57
Functional Safety Manual
Special Documentation
Guided radar for liquids and bulk solids with 4 to 20 mA output signal
Dokumentacja specjalna (SD) -
Accessories, Spacer PEEK
Accessories, Spacer PEEK
Dokumentacja specjalna (SD) -
Levelflex FMP5x
Heartbeat Diagnostics
Heartbeat Verification
Heartbeat Monitoring
Special Documentation
Guided wave radar
Dokumentacja specjalna (SD) -
Cable gland M20 Ex d
for the Japanese market
Dokumentacja specjalna (SD) -
Centering star PEEK
Levelflex FMP51, FMP54
Special Documentation
Levelflex FMP51, FMP54
Dokumentacja specjalna (SD) -
Levelflex
FMP51, FMP52, FMP54, FMP55
Guided Level Radar
Application and Engineering Guide
Guided Level Radar
Dokumentacja specjalna (SD) -
Levelflex FMP5x, Micropilot FMR5x
Weather protection cover
Dokumentacja specjalna (SD) -
Bluetooth module
BT10
Accessories
Special Documentation
Accessories
Dokumentacja specjalna (SD) -
Levelflex FMP5x
Tie-on label for rope probes
Dokumentacja specjalna (SD) -
Overvoltage Protection
1-channel (OVP10), 2-channel (OVP20)
Clip-on overvoltage protection module for 2-wire devices
Special Documentation
Pluggable overvoltage protection module for 2-wire platform devices
Dokumentacja specjalna (SD) -
Levelflex FMP51, FMP52, FMP54, FMP55, FMP57
Guided Level Radar
Special Documentation
Guided Level Radar
Dokumentacja specjalna (SD) -
Isolated tie-down for Levelflex with rope probes
Isolated tie-down for Levelflex with rope probes
Dokumentacja specjalna (SD) -
RFID TAG
Special Documentation
RFID TAG
Special DocumentationDokumentacja specjalna (SD) -
Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Manufacturer Information for users regarding software updates (NE53)
Software version V01.01.zz
Informacja producenta (MI) -
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Manufacturer information for users regarding software updates (NE53)
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Firmware: V01.03.zz, HART Dev Rev 4
Manufacturer information for users regarding software updates (NE53)Informacja producenta (MI) -
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Manufacturer information for users regarding software updates (NE53)
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Firmware V01.01.zz, PROFIBUS PA
Manufacturer information for users regarding software updates (NE53)Informacja producenta (MI) -
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Manufacturer information for users regarding software updates (NE53)
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Software version V01.02.00 HARTInformacja producenta (MI) -
Przetworniki poziomu Levelflex NiS_02_2011
Nowa rodzina innowacyjnych radarów falowodowych Levelflex
Evolution SeriesPublikacje (PU)04/12Polski -
Radary falowodowe Levelflex - art CE 11_2010
Levelflex Evolution Series: wyższy poziom radarów falowodowych.
Nowa rodzina innowacyjnych przetworników poziomu Endress+HauserPublikacje (PU)03/12Polski -
More efficient with the supplier-managed inventory business model
Inventory and supply chain solution across depots for a chemical
producerRozwiązania branżowe (SO)09/19Angielski -
Real-time inventory information across production storages
Usage of existing material on stocks and reduction of locked-in
inventory costsRozwiązania branżowe (SO)09/19Angielski -
Prevent unscheduled downtimes
With fuel and chemical supply chain management in Primaries
Rozwiązania branżowe (SO)09/19Angielski -
The efficient business model with Vendor Managed Inventory
Inventory solution for a chemical distributor
Rozwiązania branżowe (SO)09/19Angielski -
Catálogo Medición y Detección de nivel
Gama de productos para aplicaciones con líquidos y sólidos
Obszary działalności (FA)09/19Hiszpański -
Mesure de niveau
Aperçu des produits pour des applications dans des liquides et des
solides en vracObszary działalności (FA)03/19fr -
Füllstandmesstechnik
Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern
Obszary działalności (FA)03/17Niemiecki -
Level measurement
Product overview for applications in liquids and bulk solids
Obszary działalności (FA)03/17Angielski -
Level measurement
Product overview for applications in liquids and bulk solids
Obszary działalności (FA)03/17Angielski -
Mesure de niveau continue dans les liquides et les solides
Sélection et configuration pour l'industrie des process
Broszura dot. kompetencji (CP)12/17fr -
Selection Guide
Continuous level measurement in liquids and bulk solids
Selection and engineering guide for the process industry
Broszura dot. kompetencji (CP)12/17Angielski -
粉体液体の連続レベル測定
レベル計選定ガイド
Broszura dot. kompetencji (CP)12/17Japoński -
Solutions pour interface
Le principe de mesure adapté à chaque application d'interface
Broszura dot. kompetencji (CP)12/10fr -
Selection Guide, Auswahlhilfe.
Kontinuierliche Füllstandmessung in Flüssigkeiten und Schüttgütern
Auswahl- und Projektierungshilfe für die Prozessindustrie
Broszura dot. kompetencji (CP)11/17Niemiecki -
Die Evolution der Inbetriebnahme
Inbetriebnahme-Wizard für Levelflex FMP5x und Micropilot FMR5x
Broszura dot. kompetencji (CP)11/15Niemiecki -
Evolution of Commissioning
Commissioning Wizard for Levelflex FMP5x and Micropilot FMR5x
Broszura dot. kompetencji (CP)10/15Angielski -
Levelflex FMP5x
Микроимпульсные уровнемеры нового поколения
Broszura dot. kompetencji (CP)08/13Rosyjski -
Separate the best from the rest
The suitable measuring principle for your individual interface
applicationBroszura dot. kompetencji (CP)07/14Angielski -
Vielschichtig
Für jedeTrennschichtapplikation das passende Messverfahren
Broszura dot. kompetencji (CP)07/14Niemiecki -
Next Level Instrumentation
The standard in guided radar instrumentation – the Levelflex family
Broszura dot. kompetencji (CP)04/16Angielski -
Next Level Instrumentation
Der Maßstab der geführten Radarmesstechnik – Die Levelflex Familie
Broszura dot. kompetencji (CP)04/16Niemiecki -
Application Information
Levelflex FMP51 and FMP54 in oil & gas applications
Broszura dot. kompetencji (CP)03/17Angielski -
Непрерывное измерение уровня жидких и сыпучих продуктов
Руководство по подбору обоурдования
Broszura dot. kompetencji (CP)03/13Rosyjski -
Next Level Instrumentation
Il nuovo standard nei radar ad onde guidate – la famiglia Levelflex
Broszura dot. kompetencji (CP)01/13Włoski -
Next Level Instrumentation
Guided Radar - Levelflex
Broszura dot. kompetencji (CP)01/13Angielski -
American version: Continuous level measurement in liquids and bulk
solids
American version: Selection and engineering guide for the process
industryBroszura dot. kompetencji (CP)Angielski -
American version: Next Level Instrumentation
American version: The new standard in guided radar instrumentation - the
Levelflex
familiyBroszura dot. kompetencji (CP)Angielski -
Interface Solutions
Interface Solutions
Choosing the best measuring
principle for your individual
interface applicationBroszura dot. kompetencji (CP)Angielski -
Whitepaper - Radiometric Solutions
Technologies for Desalters
Studium przypadków (CS)11/17Angielski -
Storage tank level with varying consistency media and agitator.
EnviroCare
International, Inc. solves challenging level measurement with Levelflex
FMP51 and
custom-made probe.
EnviroCare International, an environmental pollution control engineering
company, was
in need of a level monitoring solution for a holding tank with an
agitator.
Endress+Hauser’s Levelflex FMP51 guided wave radar with a custom-made
probe
proved to be up forthe challenge.Studium przypadków (CS)10/19Angielski -
Process automation worth its weight in gold
Memosens pH sensors improve processes at Agnico Eagle
Studium przypadków (CS)07/16Angielski -
L’automatisation des process vaut son pesant d’or
Memosens Les sondes de pH améliorent les process chez Agnico Eagle
Studium przypadków (CS)07/16fr -
Prozessautomatisierung, die Gold wert ist
Memosens pH-Sensoren verbessern Prozesse bei Agnico Eagle
Studium przypadków (CS)07/16Niemiecki -
The challenge and solution, inventory Management of NGLs in 1.3m x 500m
horizontal
vessels
White Paper - As presented at the Canadian School of hydrocarbon
measurement
calgary 2018Studium przypadków (CS)05/18Angielski -
Medición de potasa cáustica - ERCROS (Spain)
Medida de nivel en continuo con radar guiado Levelflex doblado de Níquel
Studium przypadków (CS)01/15Hiszpański -
Bluetooth module BT10 - checklist and Installation guide
Whatare the requirements to use the Bluetooth module BT10 for our Radar
devices?
And how do you install it? We answer these two questions in this
document.Innowacje (IN)07/18Niemiecki -
Bluetooth module BT10 - checklist and Installation guide
Whatare the requirements to use the Bluetooth module BT10 for our Radar
devices?
And how do you install it? We answer these two questions in this
document.Innowacje (IN)06/18Angielski -
Module Bluetooth BT10 - checklist et guide d'installation
Quelles sont les conditions requises pour utiliser le module Bluetooth
BT10 pour nos
appareils radar ?
Comment l'installer ? Nous répondons à ces deux questions dans ce
document.Innowacje (IN)06/18fr -
Radarowe pomiary poziomu wody w walczaku
Przebadane przez Centralne Laboratorium Dozoru Technicznego
Innowacje (IN)05/12Polski -
レベルフレックス
レベルフレックスFMPシリーズ
Innowacje (IN)04/17Japoński -
GSD Single, GSD_PA_LE_Levelflex_0x1558_0x02_0x01_PALIB, 06.02.2015 (Level, Levelflex, 0x1558)
PROFIBUS PA,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.00.00Language neutral -
GSD Single, GSD_EH_PA_LE_Levelflex_0x1558_0x01_0x01_PALIB, 14.04.2014 (Le
vel, Levelflex, 0x1558)
PROFIBUS PA,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.00.00Language neutral -
EDD Single, AMS12_0_HART_LE_Levelflex_FMP5x_0x0022_0x03_0x01, 04.04.2017 (Level, Levelflex, 0x0022)
HART,
AMS Version: 12.0, 12.5, 13.0, 13.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS12_HART_LE_Levelflex_FMP5x_0x0022_0x04_0x03, 21.08.2018 (Level, Levelflex, 0x0022)
HART,
AMS Version: 12.0, 12.5, 13.0, 13.1, 13.5, 14.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS10_HART_LE_Levelflex_FMP5x_0x0022_0x04_0x03, 24.08.2018 (Level, Levelflex, 0x0022)
HART,
AMS Version: 10.0, 10.5, 11.0, 11.1, 11.5Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_HART_LE_LevelflexFMP5x_0x0022_0x03_0x02, 20.05.2015 (Level, Levelflex)
HART,
PDM Version: 6.1, 8.1 SP1, 8.2.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_PA_LE_Levelflex_0x1558_0x02_0x01, 06.02.2015 (Level, Levelflex, 0x1558)
PROFIBUS PA,
PDM Version: 6.1, 8.1 SP 1, 9.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_HART_LE_LevelflexFMP5x_0x0022_0x02_0x02, 20.05.2015 (Level, Levelflex)
HART,
PDM Version: 6.0 SP5, 6.1, 8.1, 8.2.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, FDM_HART_LE_LevelflexFMP5x_0x0022_0x03_0x01, 18.08.2016 (Leve
l, Levelflex, 0x0022)
HART,
Field Device Manager Version: R430.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_HART_LE_LevelflexFMP5x_0x0022_0x04_0x03, 12.10.2018 (Level, Levelflex, 0x0022)
HART,
PDM Version: 6.1, 8.1, 8.2.1, 9.0.1.2Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS10_5_HART_LE_Levelflex_FMP5x_0x0022_0x03_0x01, 04.04.2017 (Level, Levelflex, 0x0022)
HART,
AMS Version: 10.5, 11.0, 11.1, 11.5, 12.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, FDM_HART_LE_LevelflexFMP5x_0x0022_0x04_0x01, 11.04.2016 (Level, Levelflex)
HART,
Field Device Manager Version: R430.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_HART_LE_LevelflexFMP5x_0x0022_0x01_0x02, 20.05.2015 (Level, Levelflex)
HART,
PDM Version: 6.0 SP5, 8.2.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS11_0_FF_LE_Levelflex_0x1022_0x02_0x02, 11.04.2017 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 11.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, EDD_FF_LE_Levelflex_FMP5x_0x1022_0x02_0x02, 10.04.2015 (Level, Levelflex)
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: AnyElectronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS10_0_FF_LE_Levelflex_0x1022_0x02_0x02, 11.04.2017 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 10.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, EH_FF_LE_Levelflex_FMP5x_0x1022_0x01_0x02, 07.04.2014 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: AnyElectronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS_FF_LE_Levelflex_0x1022_0x01_0x02, 02.07.2014 (Level, Leve
lflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 11.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS13_0_FF_LE_Levelflex_0x1022_0x02_0x02, 11.04.2017 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 13.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_PA_LE_Levelflex_0x1558_0x01_0x01, 07.01.2019 (Level, Levelflex, 0x1558)
PROFIBUS PA,
PDM Version: 6.0 SP5, 8.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS12_0_FF_LE_Levelflex_0x1022_0x02_0x02, 11.04.2017 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 12.0Electronic Data Description (EDD)1.00.00Language neutral -
DTM Single, Levelflex_FMP5x_FF_FW1_00_zz_Dev_Rev_1, 22.10.2020 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Field Device Manager Version: R500
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0
Plant ResourceManager Version: R3.31Device Type Manager (DTM)1.11.0.1475Language neutral -
DTM Single, Levelflex_FMP5x_FF_FW1_01_zz_Dev_Rev_2, 22.10.2020 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0
Plant Resource Manager Version: R3.12Device Type Manager (DTM)1.11.0.1471Language neutral -
DTM Single, Levelflex_FMP5x_PA_FW1_01_zz_Dev_Rev_2, 21.10.2020 (Level, Levelflex, 0x1558)
PROFIBUS PA,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Experion Version: R500
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0 SP4
Plant Resource Manager Version: R3.31Device Type Manager (DTM)1.11.0.1017Language neutral -
DTM Single, Levelflex_FMP5x_PA_FW1_00_zz_Dev_Rev_1, 21.10.2020 (Level, Levelflex, 0x1558)
PROFIBUS PA,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Experion Version: R500
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0 SP4
Plant Resource Manager Version: R3.31Device Type Manager (DTM)1.11.0.1015Language neutral -
DTM Single, Levelflex_FMP5x_HART_FW1_02_zz_Dev_Rev_3, 28.10.2020 (Level, Levelflex, 0x0022)
HART,
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
FieldMate Version: 2.05
Plant Resource Manager Version: R3.10, R3.11Device Type Manager (DTM)1.10.1.2374Language neutral -
DTM Single, Levelflex_FMP5x_HART_FW1_03_zz_Dev_Rev_4, 27.10.2020 (Level, Levelflex, 0x0022)
HART,
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
Plant Resource Manager Version: R3.12Device Type Manager (DTM)1.10.1.2369Language neutral -
DTM Single, Levelflex_FMP5x_HART_FW1_01_zz_Dev_Rev_2, 23.10.2020 (Level, Levelflex, 0x0022)
HART,
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
Plant Resource Manager Version: R3.11Device Type Manager (DTM)1.10.0.2379Language neutral -
Faceplate Library, PRM_HART_Package_Level_1_08_00, 22.07.2015 (Level)
HART,
Plant Resource Manager Version: R3.02, R3.05, R3.11, R3.12Faceplate1.08.00Language neutral -
Faceplate Library, PRM_FF_Package_Level_1_05_00, 29.05.2018 (Level)
FOUNDATION Fieldbus H1,
Plant Resource Manager Version: R3.02, R3.12Faceplate1.05.00Language neutral -
Faceplate Single, PRM_FF_LE_Levelflex_0x1022_0x02_0x02, 10.04.2015 (Level, Levelflex)
FOUNDATION Fieldbus H1,
Plant Resource Manager Version: R3.12Faceplate1.00.00Language neutral -
Faceplate Single, PRM_HART_LE_LevelflexFMP5x_0x0022_0x04_0x01, 11.04.2016 (Level, Levelflex)
HART,
Plant Resource Manager Version: R3.12Faceplate1.00.00Language neutral -
Faceplate Single, PRM_HART_LE_LevelflexFMP5x_0x0022_0x03_0x01, 19.11.2015
(Level, Levelflex)
HART,
Plant Resource Manager Version: R3.11, R3.12Faceplate1.00.00Language neutral -
Teaser ToF Wizard French
Animation EN 1920x1080 mp4
Animacja12/15fr -
Teaser ToF Wizard
Animation DE 1920x1080 mp4
Animacja11/15Niemiecki -
Teaser ToF Wizard
Animation EN 1920x1080 mp4
Animacja11/15Angielski -
Puesta en marcha de instrumentos Levelflex y Micropilot
La película muestra la puesta en marcha o comisionado de los rádares
guiados y sin contacto Levelflex FMP5x y Micropilot FMR5x enseis
sencillos pasos.Animacja10/14Hiszpański -
Commissioning of Levelflex and Micropilot instruments
Movie EN 1280x720 mp4
Animacja10/14Angielski -
Animation Measuring Principle Time-of-Flight
Animation FR flv 480x270
Animacja08/13fr -
Animation Measuring Principle Time-of-Flight
Animation FR mp4 1280x720
Animacja08/13fr -
Plant Safety
Animation EN mp4
Animacja06/15Angielski -
Plant Safety
Animation FR 1280x720 mp4
Animacja06/15fr -
Animation Measuring Principle Time-of-Flight
Animation ES mp4 1280x720
Animacja05/13Hiszpański -
Animation Measuring Principle Time-of-Flight
Animation ES flv 480x270
Animacja05/13Hiszpański -
Animation Measuring Principle Time-of-Flight
Animation DE flv 480x270
Animacja04/13Niemiecki -
Animation Measuring Principle Time-of-Flight
Animation EN mp4 1280x720
Animacja04/13Angielski -
Animation Measuring Principle Time-of-Flight
Animation EN flv 480x270
Animacja04/13Angielski -
Animation Measuring Principle Time-of-Flight
Animation DE mp4 1280x720
Animacja04/13Niemiecki -
Commissioning of Levelflex and Micropilot instruments
Movie IT 1280x720 mp4
Animacja02/15Włoski -
113GHz Campaign
complete movie
Animation 1920x1080 mp4 FR
Film08/17fr -
113GHz Campaign
Levelflex 1GHz guided radar
Animation 1920x1080 mp4 FR
Film08/17fr -
Animation Measuring Principle Time-of-Flight
Animation TR mp4 1920x1080
Film08/17Turecki -
113GHz Campaign
complete movie
Animation 1920x1080 mp4 DE
Film04/17Niemiecki -
113GHz Campaign
Levelflex 1GHz guided radar
Animation 1920x1080 mp4 DE
Film04/17Niemiecki -
113GHz Campaign
Levelflex 1GHz guided radar
Animation 1920x1080 mp4 EN
Film03/17Angielski -
113GHz Campaign
complete movie
Animation 1920x1080 mp4 EN
Film03/17Angielski -
Levelflex
Kod przyrządu: FMP51-
Numer deklaracji: HE_01292_01.20
Producent Specyfikacja: Air Quality Control (TA Luft)Manufacturer DeclarationNiemiecki -
Cerabar S, Deltabar S, Levelflex
Kod przyrządu: FMD78-, FMP51-, PMD75-, PMP71-, PMP75-
Numer deklaracji: HE_00913_02.17
Producent Specyfikacja: Explosion protectionManufacturer DeclarationAngielski -
Levelflex
Kod przyrządu: FMP50-, FMP54-, FMP52-, FMP57-, FMP55-, FMP51-, FMP53-, FMP56-
Numer deklaracji: HE_00199_01.15
Producent Specyfikacja: RoHSManufacturer DeclarationNiemiecki , Angielski -
Levelflex, Liquiphant S, Micropilot
Kod przyrządu: FMP51-, FMP54-, FMR51-, FTL71-
Numer deklaracji: HE_01157_01.19
Producent Specyfikacja: Explosion protectionManufacturer DeclarationNiemiecki , Angielski -
Cerabar, Cerabar M, Cerabar S, Levelflex, Micropilot, Micropilot S
Kod przyrządu: FMR56-, FMR57-, FMR60-, FMR62-, FMR67-, PMC11-, PMC21-, PMC71B-, PMP11-, PMP21-, PMP23-, PMP51-, PMP51B-, PMP55-, PMP71-, PMP71B-, PMP72-, PMP75-, FMR540-, FMR54-, FMR533-, FMR532-, FMR531-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
Numer deklaracji: HE_01158_01.19Manufacturer DeclarationAngielski -
Levelflex
Kod przyrządu: FMP51-
Numer deklaracji: HE_00787_01.17
Producent Specyfikacja: RoHSManufacturer DeclarationChiński -
Levelflex
Kod przyrządu: FMP51-
Numer deklaracji: HE_00919_01.18
Producent Specyfikacja: 10/2011, 1935/2004Manufacturer DeclarationNiemiecki , Angielski -
Levelflex
Kod przyrządu: FMP51-
Numer deklaracji: HE_00795_01.17
Producent Specyfikacja: RoHSManufacturer DeclarationChiński -
Levelflex
Kod przyrządu: FMP51-
Numer deklaracji: HE_01005_01.18
Producent Specyfikacja: Performance characteristicsManufacturer DeclarationAngielski -
Levelflex
Kod przyrządu: FMP51-
Numer deklaracji: HE_00919_02.18
Producent Specyfikacja: 10/2011, 1935/2004Manufacturer DeclarationNiemiecki , Angielski -
Levelflex
Kod przyrządu: FMP51-
Numer deklaracji: FDA_00218_01.19FDA DeclarationNiemiecki , Angielski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Numer deklaracji: EC_00747_02.19EU DeclarationNiemiecki , Angielski , fr -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Numer deklaracji: EG 10 009 XEU DeclarationNiemiecki , Angielski , fr -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Numer deklaracji: EC_00633_03.18EU DeclarationNiemiecki , Angielski , fr -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Numer deklaracji: EC_00748_02.19EU DeclarationNiemiecki , Angielski , fr -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Numer deklaracji: EG 10 010 XEU DeclarationNiemiecki , Angielski , fr -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Numer deklaracji: EC_00746_02.19EU DeclarationNiemiecki , Angielski , fr -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
EU DeclarationNiemiecki , Angielski , fr -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Numer deklaracji: EC_00202_04.16EU DeclarationNiemiecki , Angielski , fr -
Levelflex
Kod przyrządu: FMP51-
Numer deklaracji: SIL_00286_01.18SIL DeclarationAngielski -
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex
Kod przyrządu: FTL260-, FMP52-, FMP54-, FMR52-, FMR54-, FMP55-, FMP53-, FMR51-, FMP51-, FMR53-, FMR62-, FTL51-, FMR50-, FTL51H-, FTL50H-, FMP50-, NMR84-, FTL51C-, FMR60-, FTL71-, FTL70-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL80-, FTL825-, FTL85-, FTW31-, FTL81-, FTW32-, FTW325-, FTW360-, NMR81-, FTI52-, FMI21-, FMI51-, FMI52-, FMR10-, FMR20-, FMR530-, FMR532-, FMR533-, FMR540-, FTC325-, FTI51-
Region: Russia (Declaration of Conformity), Russia (TR CU)
Jednostka certyfikująca: EAC
Numer dopuszczenia: RU D-DE.MO10.B.05528MiscellaneousRosyjski -
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Einstabsonde, Dreistabsonde, Doppelstabsonde
Kod przyrządu: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-
Region: Russia (Declaration of Conformity), Russia (TR CU)
Jednostka certyfikująca: EAC
Numer dopuszczenia: RU D-DE.MO10.B.05531MiscellaneousRosyjski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-
Region: Russia (TR CU)
Jednostka certyfikująca: EAC
Numer dopuszczenia: TС RU D-DE.MU62.B.02537MiscellaneousRosyjski -
Levelflex
Kod przyrządu: FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
Region: Russia
Jednostka certyfikująca: Rostekhnadzor
Numer dopuszczenia: 01-TY-00477-2014MiscellaneousRosyjski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Russia (TR CU)
Jednostka certyfikująca: EAC
Numer dopuszczenia: TC BY_112 11.01. TP020 003 127MiscellaneousRosyjski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Canada, USA
Jednostka certyfikująca: CSA
Kategoria: I/2/A,B,C,D, I,II,III/1/A,B,C,D,E,F,G, I/zone 1, I/zone 0
Ochrona: IS, XP, AEx/Ex ia IIC T, AEx/Ex d [ia] IIC TExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Canada
Jednostka certyfikująca: FM
Kategoria: I/2/A,B,C,D/T, I/zone 0, I,II,III/1/A,B,C,D,E,F,G T, I/I
Ochrona: NI, IS, XP, Ex ia IIC T6...T1 Ga, [ia] IIC T Ga/GbExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: USA
Jednostka certyfikująca: FM
Kategoria: I/2/A,B,C,D/T, I,II,III/1/A,B,C,D,E,F,G/T, I/zone 0, I/I
Ochrona: DIP/AIS, IS, NI, XP/AIS, AEx ia IIC T6...T1 Ga, IIC T Ga/GbExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP50-, FMP52-, FMP54-, FMP57-, FMP55-, FMP53-, FMP51-, FMP56-
Region:
Jednostka certyfikująca:
Ochrona: Ex d, Ex ia, Ex nA, Ex tExplosion Protection -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Brazil
Jednostka certyfikująca: DEKRA
Kategoria: zone 0,1, zone 20, zone 0, zone 2
Ochrona: Ex ta, Ex nA, Ex ic, Ex ia, Ex dExplosion ProtectionPortugalski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: India
Jednostka certyfikująca: CC(O)E
Ochrona: Ex iaExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP54-, FMP57-, FMP55-, FMP56-
Region: Japan
Jednostka certyfikująca: CML
Ochrona: Ex dExplosion ProtectionJapoński -
Levelflex
Kod przyrządu: FMP50-, FMP54-, FMP52-, FMP57-, FMP55-, FMP51-, FMP53-, FMP56-
Region: South Korea
Jednostka certyfikująca: KTL
Ochrona: Ex dExplosion Protection -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: China
Jednostka certyfikująca: NEPSI
Kategoria: zone 20,21, zone 0,1, zone 20, zone 0, zone 2, zone 1
Ochrona: Ex ic [ia] IIC T6...T1 Gc, Ex nA IIC T6...T1 Gc, Ex nA [ia] IIC T6...T1 Gc, DIP A20/21 TA, Txxx°C IP66, Ex ic IIC T6...T1 Gc, Ex iaD 20 Txxx°C, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIC T6...T1 Ga, Ex d [ia] IIC T6...T1 Gb, Ex d [ia] IIC T6...T1 Ga/GbExplosion ProtectionChiński -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Europe (ATEX)
Jednostka certyfikująca: DEKRA
Ochrona: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion ProtectionNiemiecki , Angielski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: India
Jednostka certyfikująca: CC(O)E
Ochrona: Ex dExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP54-, FMP55-, FMP53-, FMP57-, FMP50-, FMP56-
Region: Europe (ATEX)
Jednostka certyfikująca: DEKRA
Ochrona: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion ProtectionLanguage neutral -
Levelflex
Kod przyrządu: FMP54-, FMP51-, FMP50-, FMP52-, FMP55-, FMP53-, FMP57-, FMP56-
Region: International (IECEx)
Jednostka certyfikująca: DEKRA
Ochrona: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP50-, FMP54-, FMP52-, FMP57-, FMP55-, FMP51-, FMP53-, FMP56-
Region: Brazil
Jednostka certyfikująca: DEKRA
Kategoria: zone 0,1, zone 20, zone 0, zone 2
Ochrona: Ex ic, Ex ia, Ex d, Ex ta, Ex nAExplosion ProtectionPortugalski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Russia (TR CU)
Jednostka certyfikująca: EAC
Ochrona: Ex ta/tb, Ex nA [ia Ga], Ex ia/d [ia], Ex ta, Ex nA, Ex ic [ia Ga], Ex ic, Ex iaExplosion ProtectionRosyjski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: International (IECEx)
Jednostka certyfikująca: DEKRA
Ochrona: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP57-, FMP54-, FMP52-, FMP55-, FMP51-, FMP53-, FMP56-, FMP50-
Region: South Korea
Jednostka certyfikująca: KTL
Ochrona: Ex iaExplosion Protection -
Levelflex
Kod przyrządu: FMP54-, FMP51-, FMP50-, FMP52-, FMP55-, FMP53-, FMP57-, FMP56-
Region: International (IECEx)
Jednostka certyfikująca: DEKRA
Ochrona: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: International (IECEx)
Jednostka certyfikująca: DEKRA
Ochrona: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion ProtectionAngielski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Brazil
Jednostka certyfikująca: DEKRA
Kategoria: zone 0,1, zone 20, zone 0, zone 2
Ochrona: Ex ta, Ex nA, Ex ic, Ex ia, Ex dExplosion ProtectionPortugalski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-
Region: Germany
Jednostka certyfikująca: DIBt
Numer dopuszczenia: Z-65.16-501Overfill PreventionNiemiecki -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-
Region: Germany
Jednostka certyfikująca: DIBt
Numer dopuszczenia: Z-65.16-501Overfill PreventionNiemiecki -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-
Region: Germany
Jednostka certyfikująca: DIBt
Numer dopuszczenia: Z-65.16-501Overfill PreventionNiemiecki -
Levelflex, Micropilot
Kod przyrządu: FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR54-, FMR53-, FMR52-, FMR51-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-, FMR50-
Radio EquipmentAngielski -
Levelflex, Micropilot
Kod przyrządu: FMR67-, FMR62-, FMR60-, FMR56-, FMR54-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-, FMR57-
Region: USARadio EquipmentAngielski -
Levelflex, Micropilot
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-, FMR50-, FMR51-, FMR52-, FMR53-, FMR60-, FMR62-
Radio EquipmentJapoński -
Levelflex, Micropilot
Kod przyrządu: FMR67-, FMR62-, FMR60-, FMR56-, FMR54-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
Radio Equipment -
Levelflex, Micropilot
Kod przyrządu: FMR67-, FMR62-, FMR60-, FMR56-, FMR54-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
Radio Equipment -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: International
Jednostka certyfikująca: PI, PROFIBUS InternationalFieldbus ConformanceAngielski -
Product Family: Levelflex
Kod przyrządu: FMP50-, FMP52-, FMP57-, FMP55-, FMP51-, FMP53-, FMP56-
Region: International
Jednostka certyfikująca: Fieldbus Foundation
Software Version: DEVICE REV. 01, DD-ITK 6.00Fieldbus ConformanceAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Micropilot, Micropilot S, Minicap, Nivector, Prosonic M, Prosonic S, Prosonic T, Pumpenschutz, Solicap M, Solicap S, Soliphant M, Soliphant T, SYSTEM, Doppelstabsonde, Dreistabsonde, Einstabsonde, Levelflex, Liquicap M, Liquicap T, Liquiphant, Liquiphant FailSafe, Liquiphant M, Liquiphant S, Liquipoint, Liquipoint T, LIQUITREND
Kod przyrządu: FTL51C-, FTL51B-, FTL51-, FTL50H-, FTL50-, FTL41-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTI52-, FTI51-, FTI26-, FTC968Z-, FTC262-, FTC260-, FMU44-, FMU43-, FTL51H-, FTL62-, FTL64-, FTL70-, FTL71-, FTL80-, FTL81-, FTL85-, FTM20-, FTM21-, FTM50-, FTM51-, FTM52-, FTW23-, FTW31-, FTW32-, FTW33-, NMR81-, NMR84-, QMW43-, FMU42-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMU41-, FMU40-, FMU30-, FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR540-, FMR54-, FMR532-, FMR53-, FMR52-, FMR51-, FMR50-, FMR20-, FMR10-, FMP57-, FMP56-
Jednostka certyfikująca: TÜVPressure EquipmentNiemiecki , Angielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP54-, FMP55-, FMP57-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP54-, FMP55-, FMP57-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP54-, FMP52-, FMP57-, FMP55-
Region: Canada
Jednostka certyfikująca: CRNPressure EquipmentAngielski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Uzbekistan
Jednostka certyfikująca: UZS
Numer dopuszczenia: 02.6586MetrologyRosyjski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Russia
Jednostka certyfikująca: Rosstandart
Numer dopuszczenia: OC.C.29.004.A NO 62785/1MetrologyRosyjski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: Kazakhstan
Jednostka certyfikująca: KazInMetr
Numer dopuszczenia: 12914Metrology -
Levelflex
Kod przyrządu: FMP54-, FMP51-, FMP50-, FMP52-, FMP55-, FMP57-, FMP56-
Region: Belarus
Jednostka certyfikująca: BEL
Numer dopuszczenia: 9772MetrologyRosyjski -
Levelflex
Kod przyrządu: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
Region: International
Jednostka certyfikująca: TÜVSafety Integrity Level (SIL)Niemiecki , Angielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP55-, FMP57-, FMP54-
Region: International
Jednostka certyfikująca: LRMarineAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP54-, FMP55-, FMP57-
Jednostka certyfikująca: BVMarineAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP54-, FMP55-, FMP57-
Region: International
Jednostka certyfikująca: DNVGLMarineAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP54-, FMP55-, FMP57-
Region: International
Jednostka certyfikująca: ABSMarineAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP57-, FMP55-
Region: International
Jednostka certyfikująca: LRMarineAngielski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP54-, FMP55-, FMP57-
Region: International
Jednostka certyfikująca: RM RSMarineRosyjski -
Levelflex
Kod przyrządu: FMP51-, FMP52-, FMP55-, FMP57-
Region: South Korea
Jednostka certyfikująca: KRMarineAngielski
Akcesoria / Części zamienne
-
-
Nr 19 Order code 71115174
Filtr obudowy 304, GT18, 1 sztuka
Consists of: 2x filter plug metall 316L. 1x pressure compensation filter. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.
-
Nr 19 Order code 71115175
Filtr obudowy Brass/Ni GT19/20, 1 szt.
Consists of: 2x filter plug brass nickel. Pressure compensation filter. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
-
-
Nr 17 Order code 71115176
Set housing securing clamps
Zastosowanie: Obudowa GT18/GT19/GT20 FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
-
-
Nr 20 Order code 71110281
Pokrywa GT18 316L, uszczelnienie
Materiał: 316L. O-ring, EPDM, pokrycie PTFE. Zastosowanie: FMP51/52/54/55/56/57, FMR51/52/53/54/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.
-
Nr 20 Order code 71110282
Pokrywa GT18 316L, wziernik, uszczeln.
Material: 316L. O-ring EPDM, PTFE coated. Usage: FMP51/52/54/55/56/57, FMR51/52/53/54/57, FHX50. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.
-
Nr 20 Order code 71110292
Cover GT19 PBT-FR, sight glass, gasket
Material: plastics PBT-FR sight glas PC. O-ring EPDM, PTFE coated. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FHX50.
-
Nr 20 Order code 71110293
Pokrywa GT19 PBT, uszczelnienie
Material: Plastik PBT, metalizowany. O-ring EPDM, pokryty PTFE. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 20 Order code 71110297
Pokrywa GT20 Alu, wziernik, uszczeln.
Materiał: Aluminium, pokrywane. O-ring EPDM, pokrywany PTFE. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
Nr 20 Order code 71110299
Pokrywa GT20 Alu, uszczelnienie
Materiał: Aluminium, pokrywane. O-ring EPDM, pokrywany PTFE. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
Nr 20 Order code 71383631
Cover GT18 316L, FVMQ
Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
Nr 20 Order code 71383666
Cover GT18 316L, sight glass, FVMQ
Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
Nr 20 Order code 71383674
Cover GT20 Alu, FVMQ
Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
Nr 20 Order code 71383675
Cover GT20 Alu, sight glass, FVMQ
Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
-
-
Nr 25 Order code 71110284
Pokrywa GT18 316L, zaciski Ex d, uszczel
Materiał: 316L. O-ring EPDM /pokrycie PTFE. Zastosowanie: Przediał podł. Ex d/XP, FMP51/52/54/55/56/57, FMR51/52/53/54/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.
-
Nr 25 Order code 71110291
Pokrywa GT18 316L, zaciski Ex, uszczeln.
Materiał: 316L. O-ring EPDM, pokrywany PTFE. Zastosowanie: Przedział podł., nie dla Ex d/XP, FMP51/52/54/55/56/57, FMR51/52/53/54/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.
-
Nr 25 Order code 71110295
Cover GT19 PBT, Terminal Ex, EPDM
Material: plastics PBT, metallized. Usage: terminal compartment, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.
-
Nr 25 Order code 71110301
Pokrywa GT20 Alu, zaciski Ex, uszczeln.
Materiał: Aluminium, pokrywane. O-ring EPDM, pokywane PTFE. Zastosowanie: przedział podłączeniowy, nie dla Ex d/XP, FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
Nr 25 Order code 71110302
Pokrywa GT20 Alu, Zaciski Exd, uszczeln.
Materiał: Aluminium, pokrywane. O-ring EPDM, pokrywane PTFE. Zastosowanie: Przedział podłączeniowy Ex d/XP, FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
Nr 25 Order code 71185516
Cover GT18 316L, Terminal, OVP, gasket
Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMP54/FMP56/FMP57, FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Prowirl 200.
-
Nr 25 Order code 71185517
Cover GT20 Alu, Terminal, OVP, gasket
Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.
-
Nr 25 Order code 71185518
Cover GT19 PBT, Terminal, OVP, EPDM
Material: plastic PBT, metallizied. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67.
-
Nr 25 Order code 71383668
Cover GT18 316L, terminal Ex, FVMQ
Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
Nr 25 Order code 71383670
Cover GT18 316L, terminal Ex d, FVMQ
Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
Nr 25 Order code 71383671
Cover GT18 316L, Terminal, OVP, FVMQ
Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
Nr 25 Order code 71383679
Cover GT20 Alu, Terminal Ex, FVMQ
Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
Nr 25 Order code 71383680
Cover GT20 Alu, Terminal Ex d, FVMQ
Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
Nr 25 Order code 71383682
Cover GT20 Alu, Terminal, OVP, FVMQ
Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
-
-
Nr 65 Order code 71110303
Zestaw uszcz. do ob. GT18, GT19, GT20
Consists of: O-ring 88.5x3.53 EPDM/PTFE, cover electronics compartment, housing GT19. O-Ring 88.5x3.53 NBR, cover electronics compartment, housing GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, cover terminal compartment, housing GT19. O-Ring 91.67x3.53 NBR, cover terminal compartment, housing GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, housing/sensor. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
Nr 65 Order code 71384797
Sealing set GT18/20, FVMQ
Consists of: O-Ring 88,5x3,53 FVMQ cover electronics compartment, housung GT18, GT20. O-Ring 91,67x3,53 FVMQ cover terminal compartment, housung GT18, GT20. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.
-
-
-
Order code 71450381
Plug M12, IP66/68 NEMA4X/6P, ProToF
For electrical connection. Usage: FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57,FMR50/FMR51/FMR52/FMR53/ FMR54/FMR57, FMR60/FMR62/FMR67.
-
-
-
Nr 34 Order code 71108594
I/O module 2-wire, 4-20mA, HART, Ex, V2
Non-Ex, Ex. 1x current output HART. Version 2. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71108594
I/O module 2-wire, 4-20mA, HART, Ex, V2
Non-Ex, Ex. 1x current output HART. Version 2. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71108594
I/O module 2-wire, 4-20mA, HART, Ex, V2
Non-Ex, Ex. 1x current output HART. Version 2. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71108595
I/O module Level, 2-wr.4-20mA,HART,Ex,V1
Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/51/52/53/54/55/56/57.
-
Nr 34 Order code 71108595
I/O module Level, 2-wr.4-20mA,HART,Ex,V1
Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/51/52/53/54/55/56/57.
-
Nr 34 Order code 71108595
I/O module Level, 2-wr.4-20mA,HART,Ex,V1
Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/51/52/53/54/55/56/57.
-
Nr 34 Order code 71108595
I/O module Level, 2-wr.4-20mA,HART,Ex,V1
Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/51/52/53/54/55/56/57.
-
Nr 34 Order code 71108599
I/O module, 2-wire, 4-20mA,HART, PFS, Ex
Non-Ex, Ex. 1x current output HART, 1x PFS. PFS=switch output. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71108603
Moduł I/O, 2-przew., PA, PFS, Ex, V1
Non-Ex, Ex. PROFIBUS PA. PFS=wyjście statusu. Wersja 1. Zastosowanie: FMP50/51/52/53/54/55/56/57.
-
Nr 34 Order code 71108603
Moduł I/O, 2-przew., PA, PFS, Ex, V1
Non-Ex, Ex. PROFIBUS PA. PFS=wyjście statusu. Wersja 1. Zastosowanie: FMP50/51/52/53/54/55/56/57.
-
Nr 34 Order code 71108603
Moduł I/O, 2-przew., PA, PFS, Ex, V1
Non-Ex, Ex. PROFIBUS PA. PFS=wyjście statusu. Wersja 1. Zastosowanie: FMP50/51/52/53/54/55/56/57.
-
Nr 34 Order code 71164940
I/O module, 2-wire, PA/FF, PFS, Ex, V2
Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass 200, Prowirl 200, Promag 200.
-
Nr 34 Order code 71164940
I/O module, 2-wire, PA/FF, PFS, Ex, V2
Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass 200, Prowirl 200, Promag 200.
-
Nr 34 Order code 71164940
I/O module, 2-wire, PA/FF, PFS, Ex, V2
Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass 200, Prowirl 200, Promag 200.
-
Nr 34 Order code 71164940
I/O module, 2-wire, PA/FF, PFS, Ex, V2
Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass 200, Prowirl 200, Promag 200.
-
Nr 34 Order code 71187812
I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2
Version 2. Not for Ex d/XP. LP=low powered. 1x current output HART. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71187812
I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2
Version 2. Not for Ex d/XP. LP=low powered. 1x current output HART. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71187812
I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2
Version 2. Not for Ex d/XP. LP=low powered. 1x current output HART. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71207473
I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2
Non-Ex, Ex. 10,4-48VDC. 1x wyjście prądowe HART. Wersja 2. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71207474
I/O mod. Level, 2-wr.2x4-20mA,HART,Ex,V2
Non-Ex, Ex. Current output, 4-20mA HART + 4-20mA analog. Version 2. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 34 Order code 71207475
I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2
Non-Ex, Ex. 90-253VAC. 1x wyjście prądowe HART. Wersja 2. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
-
-
Nr 37 Order code 71110279
Zestaw zacisków 4-przew., moduł I/O
Zawiera: 2x wtyki 2 polowe, zielone, 2x wtyki 2 polowe, czerwone. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57.
-
Nr 37 Order code 71110280
Zestaw zacisków 2-przew., moduł I/O
Zawiera: 4x zacisk 2 polowy, zielony. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Zastosowanie: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
-
-
Order code 71248380
Zestaw części zamiennych FHX50
Zestaw do przebudowy urządzenia pomiarowego. W jego skład wchodzą: płyta główna przetwornika, kabel, dławik, tuleja M12, VA. Przeznaczenie: FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57. Prowirl 200, Promass 200, Promag 200, Prosonic Flow 200.
-
Order code 71206552
-
Order code 71206554
-
Order code 71206555
Kabel do wskaźnika FHX50, 20m
Ekranowany kabel podłączeniowy. Zastosowanie: wskaźnik FHX50
-
Order code 71206556
-
Order code 71197334
Transmitter electronics FHX50
Consists of: Electronics, ribbon cable. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass200, Prowirl 200, Promag 200.
-
Order code
Remote display FHX50 please order with separate order structure.
-
Order code 71296840
Wtyk M12, VA
Służy do podłączenia wskaźnika FHX50. Nie używać w strefie pyłowej Ex. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, Prowirl 200, Promass 200, Promag 200, Prosonic Flow 200.
-
Order code 71128617
Overvoltage protection (OVP10),1-Channel
4-20mA HART. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.
-
Order code 71128619
Ochronnik p-przepięc. (OVP20),2-kanałowy
4-20mA HART, 4-20mA. Zastosowanie: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.
-
-
-
Nr 30 Order code XPF0001-
Electronics Levelflex FMP5x
Main electronics. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.
-
-
-
Nr 40 Order code XPD0024-
Display module, SD02, push buttons
For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Consists of: Display SD02, helix cable, ribbon cable, connector cover.
-
Nr 40 Order code XPD0025-
Display module, SD03, Touch Control
For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200. Consists of: Display SD03 illuminated, ribbon cable, connector cover.
-
-
-
Nr 57 Order code 71114459
O-ring 7.59x 2.62, FKM Viton, 5 pieces
Zastosowanie: FMP50, FMP51 G3/4, NPT3/4
-
Nr 57 Order code 71114460
-
Nr 57 Order code 71114461
O-ring 7.59x 2.62 FFKM Kalrez, 1 piece
Zastosowanie: FMP51 G3/4, NPT3/4.
-
Nr 57 Order code 71114462
-
Nr 57 Order code 71114463
-
Nr 57 Order code 71114464
-
Nr 57 Order code 71294076
-
-
-
Nr 56 Order code 71114452
Obciążnik FMP5x, lina 4mm 1/6", 316L
Materiał: 316L. Śruba M6x12, hexagonalna. Zastosowanie: FMP50/FMP51/FMP54/FMP56/FMP57.
-
-
-
Order code 71373490
Krzyżak centrujący, PEEK, 48-95mm, 1 szt
Przeznaczenie dla linki 4mm. D=48-95 mm. Średnica adoptowalna. Tmax 250oC. Materiał: PEEK. Zgodność z FDA, EG 1935/2004, EU 10/2011. Zastosowanie: FMP50/FMP51/ FMP52/FMP54/FMP55.
-
Order code 71373492
Krzyżak centrujący, PEEK, 48-95mm, 5 szt
Przeznaczenie dla linki 4mm. D=48-95 mm Średnica adoptowalna. Tmax 250oC. Materiał: PEEK. Zgodność z FDA, EG 1935/2004, EU 10/2011. Zastosowanie: FMP50/FMP51/ FMP52/FMP54/FMP55.
-
Order code 71381909
Krzyżak centrujący sondę d=48-95mm, PEEK
Element centrujący falowód 12mm. Dostosowywalny do naczyń pomiarowych o średnicach D=48-95 mm. Tmaks 250oC Materiał: PEEK Zgodność z FDA, EG1935/2004, EU10/2011 Przeznaczenie: FMP51/FMP54
-
Order code 71377355
Moduł Bluetooth (BT10)
Moduł do komunikacji bezprzewodowej. Zastosowanie: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.
-
-
-
Nr 55 Order code XPF0005-
Probe FMP51 w/o process connection
Usage: existing process connection FMP51.
-
-
-
Order code
Check utelized cable length. Replace a faulty unit with a functioning unit of the same type only.
-
-
-
Nr 70 Order code 71114823
HF Coaxcable L=3m/9ft, plug
Usage: FMP50/FMP51/FMP52/FMP54/ FMP55/FMP56/FMP57, sensor remote.
-
Nr 70 Order code 71235564
HF-Coaxcable L=6m/18ft, plug
O-ring EPDM. Usage: housing F27 316L, FTG20.
-
Nr 70 Order code 71235578
HF-Coaxcable L=9m/27ft, plug
O-ring EPDM. Usage: housing F27 316L, FTG20.
-
-
-
Order code 71102216
Zest. mont. Cerabar,Deltapilot,Levelflex
Material: 316L. Usage: wall/pipe mounting (2"), PMC71, PMP71/75, FMB70, PMC51, PMP51/55, FMB50/51/52/53. FMP50/51/52/53/54/55/56/57.
-
Order code 71162242
Osłona pogodowa GT18/GT19/GT20 316L
Zastosowanie: Levelflex FMP5x, Promass 200/TB2, Prosonic Flow 200.
-
Order code 71069064
Krzyżak centrujący PEEK 48-95mm
Element centrujący falowód 16mm. Dopasowywalny do średnicy komory pomiarowej w zakresie D=48-95 mm. Tmax 250oC. Materiał: PEEK. Zgodność z FDA, EG1935/2004, EU10/2011. Przeznaczenie: falowód prętowy sond FMP51/FMP54.
-
Order code 71069065
Krzyżak centrujący PFA 37mm/16mm
Element centrujący falowód 16mm. Tmaks 250oC Materiał: PFA Zgodność z FDA, EG1935/2004, EU10/2011 Przeznaczenie: FMP51/FMP52/FMP54/FMP55
-
Order code 71157270
Krzyżak centrujący PFA 37mm/12mm
Element centrujący falowód 12mm. Tmax 250oC. Materiał: PFA Zgodność z FDA, EG1935/2004, EU10/2011. Przeznaczenie: FMP51
-
Order code 71162453
Krzyżak centrujący PFA 16.4mm/8mm
Element centrujący falowód 8mm. Tmax 250oC. Materiał: PFA Zgodność z FDA, EG1935/2004, EU10/2011. Przeznaczenie: FMP51
-
-
-
Nr 54 Order code 71156686
Threaded pin M10x1, AlloyC22
Usage: divisible rod FMP40/45, FMP51/54.
-
-
-
Nr 59 Order code 71023427
Podkł. Nordlock DIN25201-A4, M10, 5 szt.
6mm lina/16mm pręt, 4mm lina wersja kołnierzowa, gwint G1-1/2, NPT1-1/2. Zastosowanie: FMP57, pręt dzielony FMP51/54.
-
-
-
Order code 52014249
Isolation tie down of the 4mm rope probe
Isolator: PPS. Ring bolt: Stainless Steel. Usage: FMP40, FMP56.
-
-
-
Nr 57 Order code 71185027
Sealing ring DIN7603-A 27x32, FA, 5pcs.
Process gasket. Usage: Process connection G3/4.
-
Nr 57 Order code 52014047
Sealing ring G1-1/2, 48x55 FA, 5 pcs.
Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.
-
-
-
Order code XPRFID-
-
-
Poprzednia wersja
