1-kanałowy przetwornik pomiarowy
Liquiline M CM42

Sensor ORP / Redox

Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

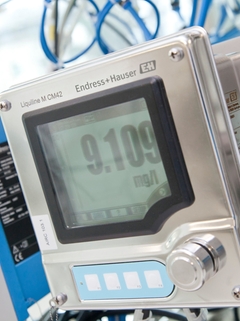

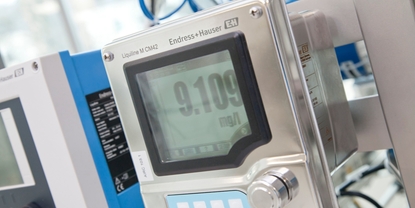

Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

ORP measurement

Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol

Plastic or stainless steel housing with EPDM sealings

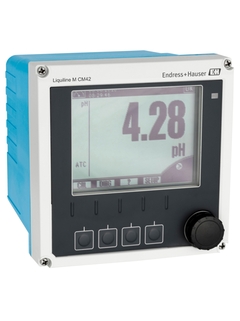

Plastic housing:
144 x 144 x 148 mm
5.67 x 5.67 x 5.83 inch

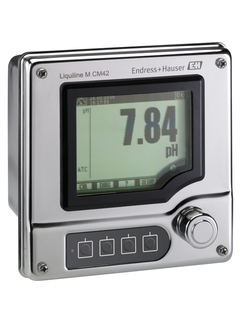

Stainless Steel:
174 x 174 x 134 mm
6.85 x 6.85 x 5.28 inch

Applicable:
Pt100, Pt1000, NTC 30K

ATEX, IECEx, FM, CSA, NEPSI, EAC, UKEx, JPN Ex

IP66/67, NEMA 4X

One channel transmitter for Memosens and analog (pH, ORP, conductivity)

1/2 x 4 to 20 mA, HART, Profibus, FF
Additional second output possible, also later

Conductive

Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

Resistance measurement

Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol

Plastic or stainless steel housing with EPDM sealings

Plastic housing:
144 x 144 x 148 mm
5.67 x 5.67 x 5.83 inch
Stainless Steel:
174 x 174 x 134 mm
6.85 x 6.85 x 5.28 inch

Applicable:
Pt100, Pt1000

ATEX, IECEx, FM, CSA, NEPSI, EAC, UKEx, JPN Ex

IP66/67, NEMA 4X

One channel transmitter for Memosens and analog (pH, ORP, conductivity)

1/2 x 4 to 20 mA, HART, Profibus PA, FF
Additional second output possible, also later

Amperometric oxygen measurement

Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

Connection of oxygen sensors with Memosens coupling

Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol

Plastic or stainless steel housing with EPDM sealings

Plastic housing:
144 x 144 x 148 mm
5.67 x 5.67 x 5.83 inch
Stainless Steel:
174 x 174 x 134 mm
6.85 x 6.85 x 5.28 inch

ATEX, IECEx, FM, CSA, NEPSI, EAC, UKEx, JPN Ex

IP66/67, NEMA4X

One channel transmitter for Memosens and analog (pH, ORP, conductivity)

1/2 x 4 to 20 mA, HART, Profibus PA, FF
Additional second output possible, also later
